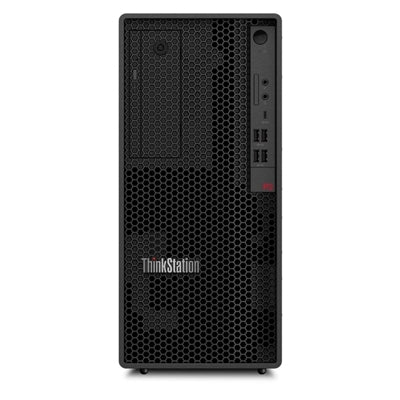

WORKSTATION LENOVO AI PC THINKSTATION P2 TWR 30JQ00B7IX 20LT ULTRA7-265 VPRO 32DDR5 1TBSSD W11PRO 3YOS VGA/RTX-A1000-8GB

Performance
Processor: Intel Core Ultra 7 265, 20C (8P + 12E) / 20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache
AI PC Category: AI-Ready Workstations
Processor Sockets: 1x FCLGA1851
Integrated Graphics: Integrated Intel Graphics
Discrete Graphics: 1x NVIDIA RTX A1000 8GB
Chipset: Intel W880 Chipset
Memory: 1x 32GB UDIMM DDR5-5600 Non-ECC
Memory Slots: Four DDR5 UDIMM slots, dual-channel capable
Max Memory: Up to 128GB (4x 32GB DDR5 UDIMM)
PCIe NVMe Controller: Integrated NVMe Controller
PCIe NVMe Drive: 1x 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal
SATA Controller: Onboard Intel RSTe SATA RAID
SATA/SAS Drive: None
Optical: None
Audio Chip: High Definition (HD) Audio, Realtek ALC623-CG codec
Power Supply: 750W Platinum Fixed

Design
Keyboard: USB, Calliope, Black, Italian
Mouse: USB Calliope Mouse, Black
Dimensions (WxDxH): 170 x 315.35 x 376 mm (6.7 x 12.4 x 14.8 inches, with feet)
Weight: 9.67 kg (21.32 lbs, maximum configuration)

Connectivity
Onboard Ethernet: Intel I219-LM, 1x GbE RJ-45
Optional Ethernet: None
WLAN + Bluetooth: None
Card Reader: SD Card Reader
Front Ports:
- 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 1x headphone / microphone combo jack (3.5mm)
- 1x microphone (3.5mm)
Optional Front Ports (configured):
- 1x SD card reader
Rear Ports:
- 2x USB-A (Hi-Speed USB / USB 2.0)
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
- 1x HDMI 2.1 TMDS
- 2x DisplayPort 1.4
- 1x Ethernet (GbE RJ-45)
- 1x line-out (3.5mm)
Optional Rear Ports (configured): None

Security & privacy
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks:
- Kensington Security Slot, 3 x 7 mm
- Padlock Loop
Cover Lock: None
Cable Lock: No Cable
Chassis Intrusion Switch: Chassis Intrusion Switch

Manageability
System Management: Intel vPro Enterprise with Intel AMT 16

Certifications
ISV Certifications: Please visit ISV certifications for Lenovo Workstations

Software
Operating System: Windows 11 Pro, WE (EN/FR/DE/NL/IT)
Bundled Software: Lenovo AI Now
